Friday, August 27, 2010

Found Friday 47

"Rich / Highly Educated / Poor"
detail, scrapbook page





Thursday, August 19, 2010

Found Friday 46 - Say Cheese

A la fromagerie, Roquefort-sur-Soulzon
(Societe Anonyme des Caves et des Producteurs Reunis de Roquefort)





More French cheese:




Saturday, August 14, 2010

Circuit Bent Sing-A-Long Barbie Karaoke Tape Recorder

My plans for a productive 3-day weekend devoted solely to art-making were dashed by some charitable person who donated a Barbie Karaoke tape recorder to the local Goodwill. Not too long ago I read about circuit bending one of these on Peter Edwards fantastic Casper Electronics site, and I've been on the lookout for one ever since. After buying a stack of fresh batteries and looking over the bending schematics I started poking around the main circuit board and identified a bunch of bend points, mostly around the echo circuit. The Barbie Karaoke has a cheap "echo" feature that when bent creates strange and wonderful noise which are generated once you turn the tape player on. After finding about 20 different bend points I decided to build a separate panel on which to mount the the various components, similar to what I did with the Caisotone. The Karaoke machine would be attached to the top of the panel with the wiring running through holes drilled in the bottom, then soldered to the various components inside the panel. Each wire attached to a bend point on the circuit board was soldered to one of twenty banana jacks, which can then be connected by lead wires to a series of potentiometers. I also added a pitch adjustment (located towards the back of the panel, on the left) and both an input and output jack - another cool thing about the Barbie Karaoke is it has two input lines (one for an audio source like a CD player, and the other for a microphone) so you can plug other stuff into it, such as other Barbie Karaokes.

Some photos:

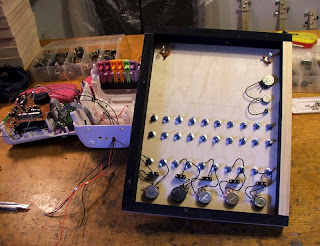

Partially wired panel with banana jacks, switches, and potentiometers.
Each pot can be turn on & off with it's own switch.

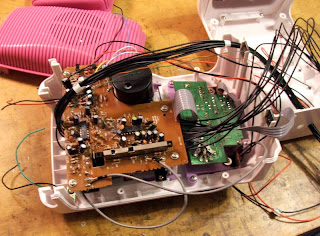

View of circuit board back in place with bend points all soldered up & wires fed through holes drilled in the bottom of the karaoke. The bundled wires at the top of the photo are all soldered to points on the echo chip.

View of bottom of completed panel.
The Barbie Karaoke is attached to the top of the panel with a single screw.


Finished!


Finished view with lead wires plugged into various bend points.

I'm really pleased with how this piece turned out. There are a few other mods you can do, such as adding a variable speed controller for the tape player that involves replacing some circuitry - maybe next time. For now I'm happy to experiment with this as-is:

Monday, August 9, 2010

Circuit Bent Elmo's World Talking Cell Phone

So my latest weekend project was circuit bending a Fisher-Price Elmo's World Talking Cell Phone that I picked up for 49 cents at our local Goodwill last Friday. After taking it apart and locating the up/down pitch bends I decided to re-house the components in a new box - there just wasn't room for the various switches & potentiometers in the original toy cell phone body. I found an old translucent plastic VHS tape box that was just the right size to hold all the guts, and got out the Dremel and soldering iron and went to work. I added two 1M pots for the pitch bends, and added 2 toggle switches - one for the distortion bend, and another to trigger the audio clips that would've played when you opened the original toy phone. I mounted the keypad directly to the inside front of the box and drilled 1/4" holes for each touch point on the keypad. I also added a 1/4" audio output jack so I can play it through an exterior amp, f/x pedals, etc.

Overall, I'm really pleased with how this one turned out. Although it's pretty basic, the distortion bend makes it into something obnoxiously special (see video clip at bottom).

front view w/ pitch bends identified

back view

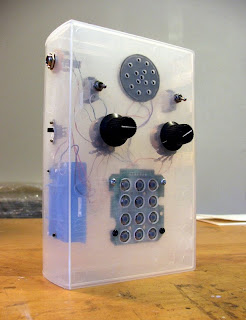

finished box, front view

finished box, back view

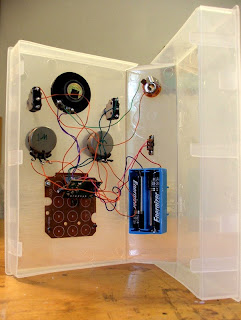

finished box, open view


Friday, August 6, 2010

Monday, August 2, 2010

Test Pattern (return to square one)

So after nearly a year of electronic detritus, white noise, and cigar box guitar-building I've circled back to the Test Pattern paintings. My goal is to work on these exclusively over the next couple of months. Anyway, here's the first new one. I did the 4 x 4" study for this one last August and looking at it again last week I felt it still held up. The dimensions for the different elements were transcribed to an 8 x 8 x 1-3/8" panel, then the newly-painted/collaged elements were attached (more about the process here.) Comparing the study to the finished piece you'll notice that I goofed up the dimensions in the upper right corner. It's okay - after a bit of angst & recalculation I think I'm happy with how it turned out.

Test Pattern - Desert Fox (study). 2009.
collage, gesso, gouache, enamel, and pastel on paper.
4 x 4"



photo of study with transcribed panel


Test Pattern - Desert Fox. 2010.
acrylic, collage, pastel, gesso, and gouache on panel.

8 x 8 x 1-3/8"
